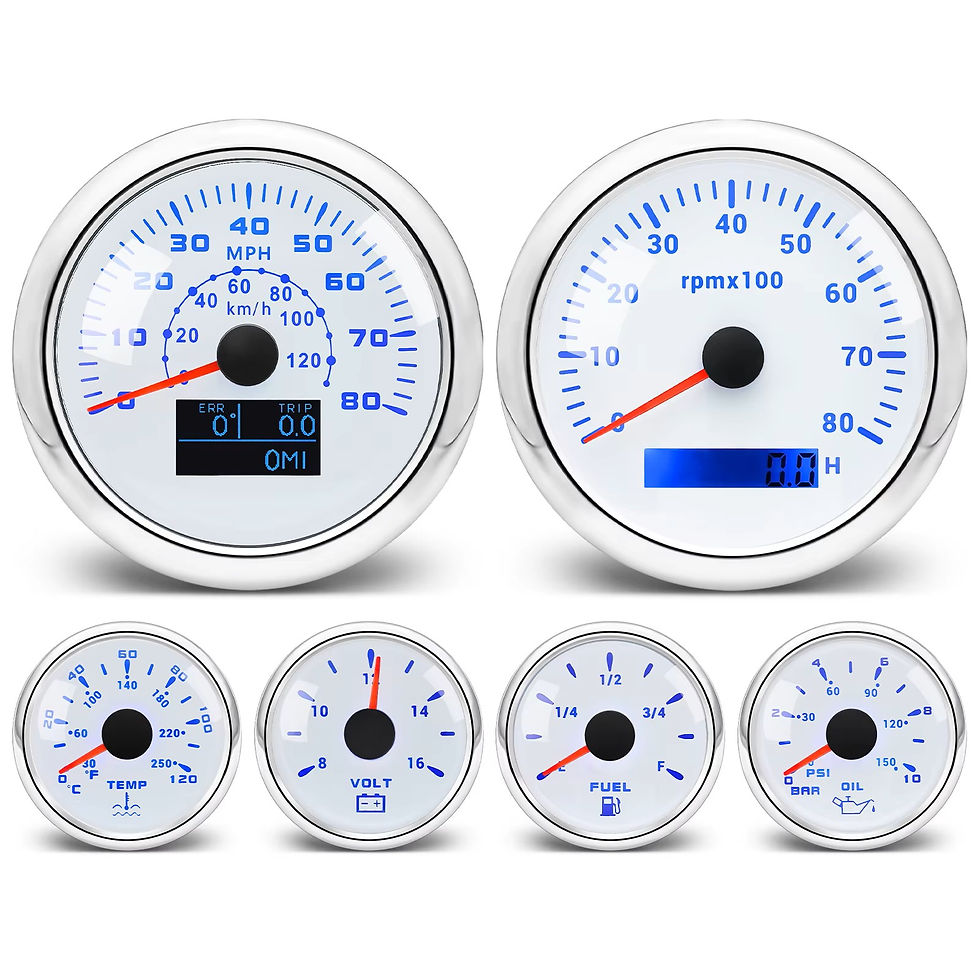

Package Included: (as the picture shows)
1 x 85mm GPS Speedometer
1 x 85mm Tachometer
1 x 52mm Fuel Level Gauge
1 x 52mm Voltage
1 x 52mm Oil Pressure Gauge
1 x 52mm Water Temp Gauge
1 x 52mm Trim Gauge
1 x Fuel Level Sensor （240~33ohm）
1 x Oil Pressure Sensor （1/8 NPT）
1 x Water Temp Sensor （1/8 NPT）
1 x Tachometer Sensor (M16)
1 x Trim Sensor

85mm GPS Speedometer
- Working Voltage: 12V/24V
- Backlight:7 Colors Backligt
- Protection rank: IP67 Waterproof
- Working temperatures: - 40 to 85°C
- Installation Diameter: 85mm (3 3/8")
- Electronic Speedometer (stepper motor)
- No Mechanic Sensor, get speed signal from GPS
- Speed Range: 0~120MPH / KMH、0~80 MPH/ KMH
- Reverse polarity protection and anti-fogging performance
- Application: Universal fit for Motorcycle/ Boat/Truck/Bus/Car

85mm Tachometer
- Signal : Pulse
- Backlight :7 Color backlight
- Engine hours: 0.0-99999.9H
- Indicating Range: 0~6000 RPM
- Tachometer: 0- 6000RPM / 8000RPM

52mm Volt Gauge
Sizes: 52 mm (2-1/16")
Measuring Range: 8 - 16 (V)
Backlight: 7 Colors

52mm Fuel Level Gauge
Sizes: 52 mm (2-1/16")
Measuring Range: Empty - Full
Resistance: 240 (E) - 33 (F) ohms
Backlight: 7 Colors

52mm Water Temperature Gauge
Install diameter: Φ52mm
Indication range: 0~120℃/30-250℉
Input signal: 287.4~22.4 ohm
Storage temperature: -40~+85℃
Backlight: 7 Colors

52mm Oil Pressure Gauge
Install diameter:Φ52mm or 2-1/16"
Indication range:0~10bar / 0-150 PSI
Operating temperature:-30~+75℃
Storage temperature:-40~+85℃
Backlight: 7 Colors

52mm Trim Gauge
Install diameter:Φ52mm or 2-1/16"
Indication range:0~10bar / 0-150 PSI
Operating temperature:-30~+75℃
Storage temperature:-40~+85℃
Backlight: 7 Colors
